In the high-precision world of Surface Mount Technology (SMT) and Printed Circuit Board (PCB) assembly, keeping equipment clean is a prerequisite for quality control. One of the most challenging maintenance hurdles in modern electronics manufacturing is the buildup of polymerized flux on wave soldering pallets.

While flux is essential for removing oxidation and ensuring sound solder joints, the repeated high-temperature cycles of wave soldering bake the flux residues and polymerize them into dense, stubborn layers. Left uncleaned, these deposits compromise pallet tolerances, cause PCB misalignment, and increase defect rates.

Traditional cleaning agents and general flux removers often fall short, leaving incomplete cleans or requiring excessive chemical consumption. MCSolvaX PL6202, a specialized cleaning solution from the MCSolvaX Series, is a proven alternative designed to tackle polymerized flux without compromising process safety or efficiency.


目次

  1. The challenge: polymerized flux vs. standard cleaners
  2. Technical performance: how MCSolvaX outperforms
  3. Comparative cleaning test results
  4. Engineered for modern electronics manufacturing
  5. Enhance your SMT yield and equipment longevity
  6. Experience the MCSolvaX difference

The challenge: polymerized flux vs. standard cleaners

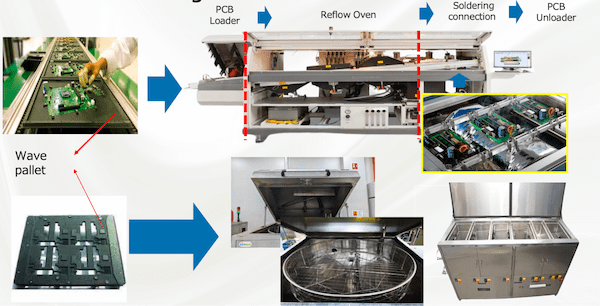

Wave pallets, commonly made from durable composite materials such as Ricocel, are repeatedly exposed to liquid flux and soldering temperatures exceeding 250℃. Over multiple passes, volatile components evaporate and leave behind 10 or more layers of heavily polymerized flux. Standard general flux cleaners face significant limitations when tackling these baked-on residues.

1Incomplete removal Even at higher concentrations (e.g., 20%), general cleaning solutions frequently leave a visible flux film on the substrate surface.
2Operational inefficiencies Incomplete cleaning requires manual scraping or secondary scrubbing, which accelerates pallet wear and increases downtime.
3High chemical consumption Using generic cleaners at high strengths increases operating expenditure (OpEx) while failing to deliver consistent, repeatable pass rates.

Technical performance: how MCSolvaX outperforms

Engineered specifically for heavy-duty flux removal, MCSolvaX provides a high-potency, low-residue cleaning process optimized for automated spray systems.

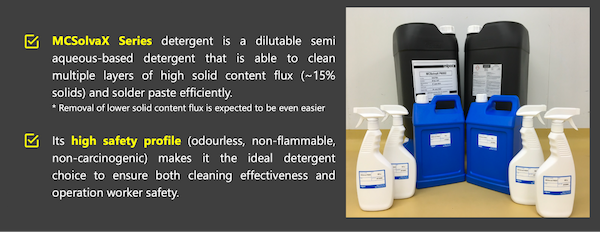

MCSolvaX Series at a glance A dilutable, semi-aqueous detergent that efficiently cleans multiple layers of high-solids flux (about 15% solids) and solder paste. Its high safety profile (odorless, non-flammable, non-carcinogenic) supports both cleaning effectiveness and operator safety.

Comparative cleaning test results

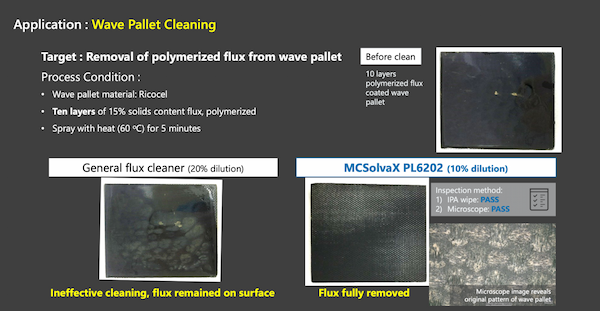

To demonstrate its performance under extreme conditions, MCSolvaX PL6202 was evaluated against a standard general flux cleaner on Ricocel wave pallets coated with 10 layers of polymerized flux (15% solids content). Both cleaners were applied by heated spray (60℃) for 5 minutes.

General flux cleaner 20% dilution Ineffective cleaning: flux remained on the surface.

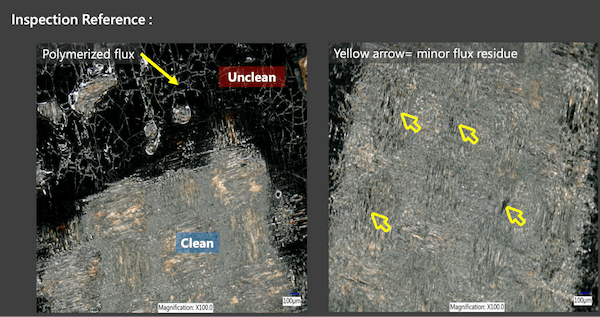

MCSolvaX PL6202 10% dilution Flux fully removed. Passed both the IPA wipe test and microscope inspection.

Even at half the concentration (10%) of the standard alternative, MCSolvaX PL6202 penetrates and dissolves cross-linked flux polymers within 5 minutes of heated spraying, restoring wave pallets to their original surface texture without requiring a secondary rinse step.


Engineered for modern electronics manufacturing

Beyond superior cleaning efficacy, the MCSolvaX Series brings physical properties designed for seamless integration into existing SMT workflows.

Compatibility Broad process compatibility Minimal foaming allows smooth operation in high-pressure spray-in-air and ultrasonic cleaning equipment, without pump cavitation or foam overflow.
Residue Low residue formula Low surface tension (about 35 ± 5 mN/m) and an alkaline pH balance ensure rapid wetting and thorough rinsing, suiting processes where post-wash water rinsing is minimized or omitted.
Stability High thermal stability With a cloud point above 60℃, the formulation remains stable and fully active during heated spray cycles.

Enhance your SMT yield and equipment longevity

Clean wave pallets directly correlate with consistent soldering quality, accurate board positioning, and extended pallet lifespan. By upgrading from conventional solvent or generic aqueous cleaners to the MCSolvaX Series, manufacturing facilities can achieve complete flux removal at lower operating concentrations, reducing overall chemical usage while eliminating quality bottlenecks caused by flux accumulation.

Experience the MCSolvaX difference

Interested in evaluating the MCSolvaX Series on your production line? Contact our technical support team today to request a product sample or schedule an on-site trial for your wave pallet cleaning process.
